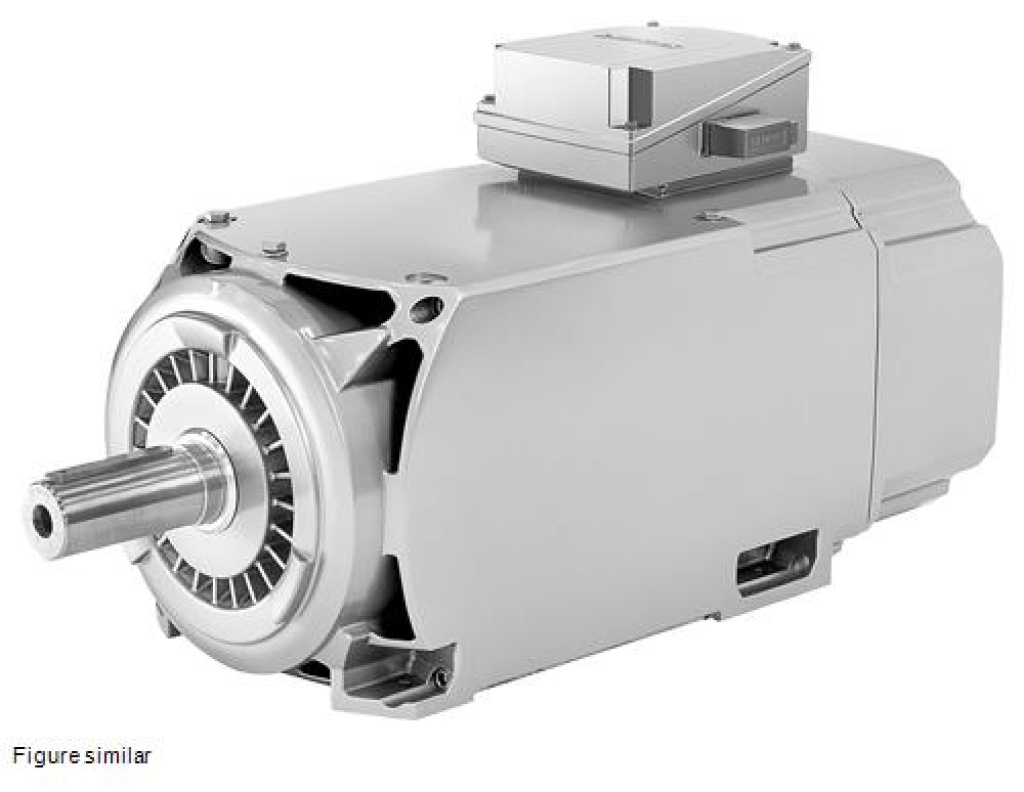

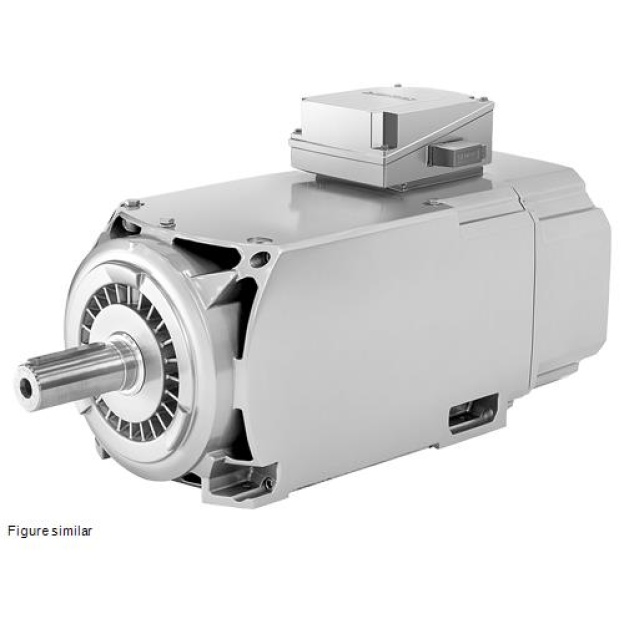

SIMOTICS M Compact asynchronous motor 1500 rpm, 76 kW, 484 Nm, 162 A, 335 V 1750 rpm, 89 kW, 486 Nm, 162 A, 390 V 2000 rpm, 98 kW, 468 Nm, 156 A, 450 V Open-circuit ventilation Direction of air flow DE-->NDE Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
